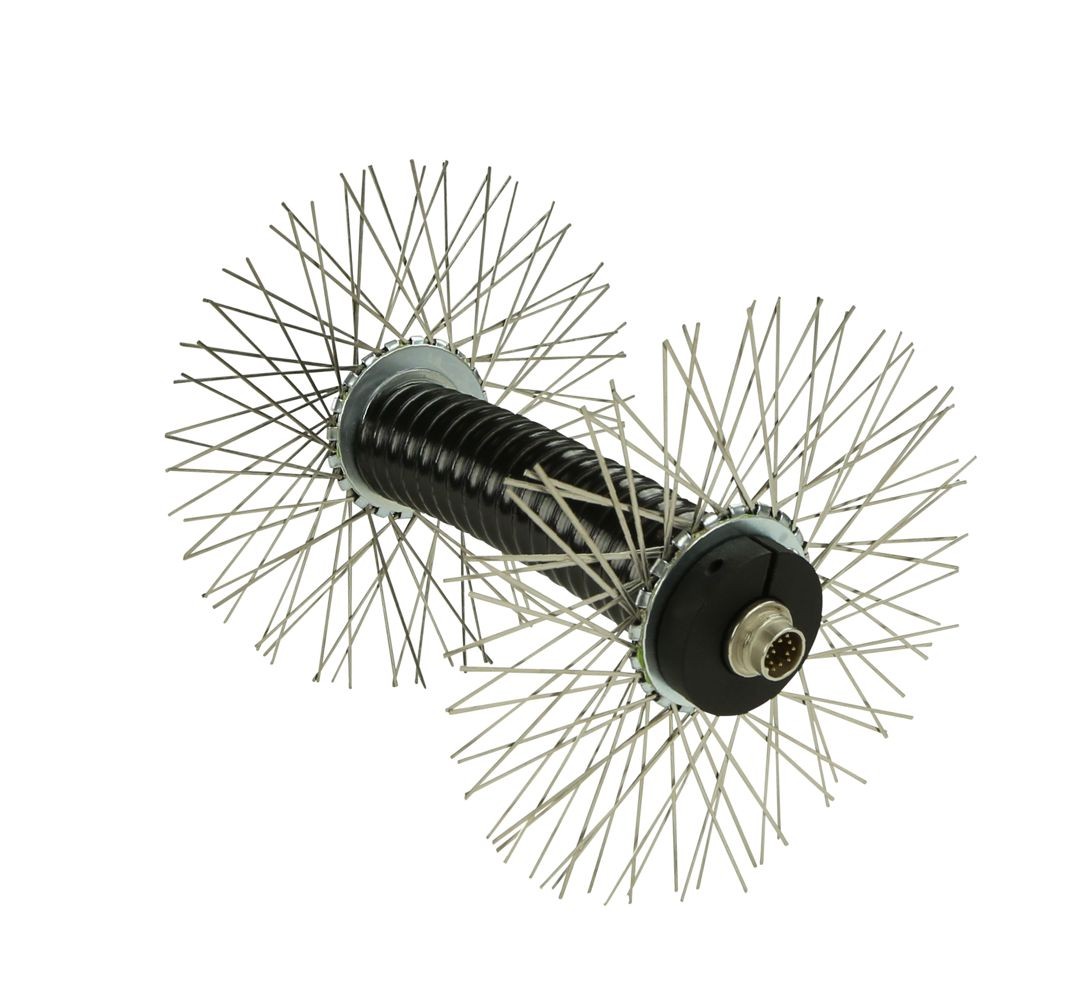

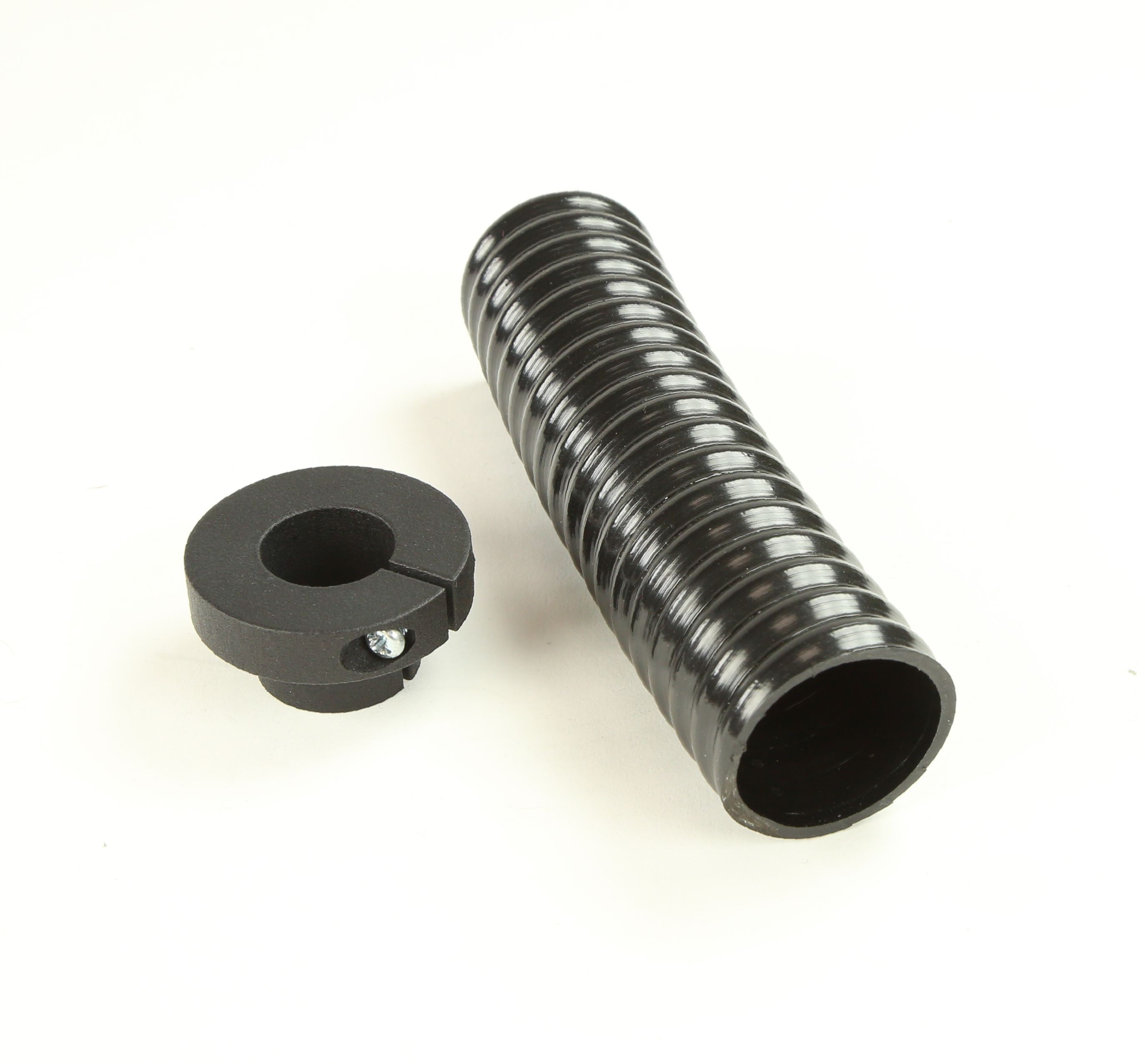

Centering adapter MK29

Centering aid for pan-tilt camera -@ screw connection for line stars -@ For pan-tilt camera Pro and HD -@ pan-tilt camera(protective cage and camera head not included in delivery)

The newly developed HD color monitor, with its compact size and lightweight design, is the perfect companion for a measuring case or backpack. The integrated lithium-ion battery ensures an operating time of approximately 2.5 hours. Photos and videos can be stored on the SD card. The battery level is displayed on the LCD screen. The new HD pan-and-tilt camera is controlled using four control buttons. It has a rotation range of 360° and a tilt range of 90°. The camera module is protected behind a glass panel and surrounded by a lighting ring with a reflector, ensuring optimal illumination. The HD-MK29 is designed for use in exhaust ducts. The flexible hydraulic hose provides excellent bendability. The camera module is safely enclosed behind a glass panel, surrounded by a reflector with built-in lighting for very bright illumination. The ultra-bright LED lighting and the 135° super wide-angle lens enable an excellent all-around view. Technical Data – 5" HD Monitor: Image and video storage on SD card HD display 5" LED voltage display in percentage on display Aluminum cover plate Dimensions: 135 x 220 x 39 mm (W x H x D) Weight: approx. 1100g Technical Data – HD Pan-and-Tilt Camera: High-precision camera lens (92°) with automatic aperture control HD camera module 8-pin connector Light sensitivity: 0.8 Lux Bright illumination with 15 SMDs Head diameter: 55 mm, length: 153 mm Weight: approx. 312 g Technical Data – HD Miniature Camera MK29: HD camera module Light sensitivity: 0.3 Lux Diameter: 29 mm Head length: 68 mm Total length: 190 mm Illumination: 15 SMDs Weight: approx. 110 g Field of view: 135° Technical Data – HD Cable Reel: Digital meter counter 8-pin connector on the handle and 12-pin connector at the rod end Can be used as a handheld or coupling reel Fiberglass camera rod: 20 m length, Ø 4.5 mm Transport lock Freewheel brake via needle bearing Dimensions: 31 x 31 x 13.5 cm (W x H x D) Weight: 1.75 kg Basket diameter: 31 cm Scope of Delivery: HD color monitor FM5 Pro HD pan-and-tilt camera HD miniature camera MK29 HD mini cable reel 20 m metered cable 2 m connection cable Protective pouch with magnet Power adapter SD card
