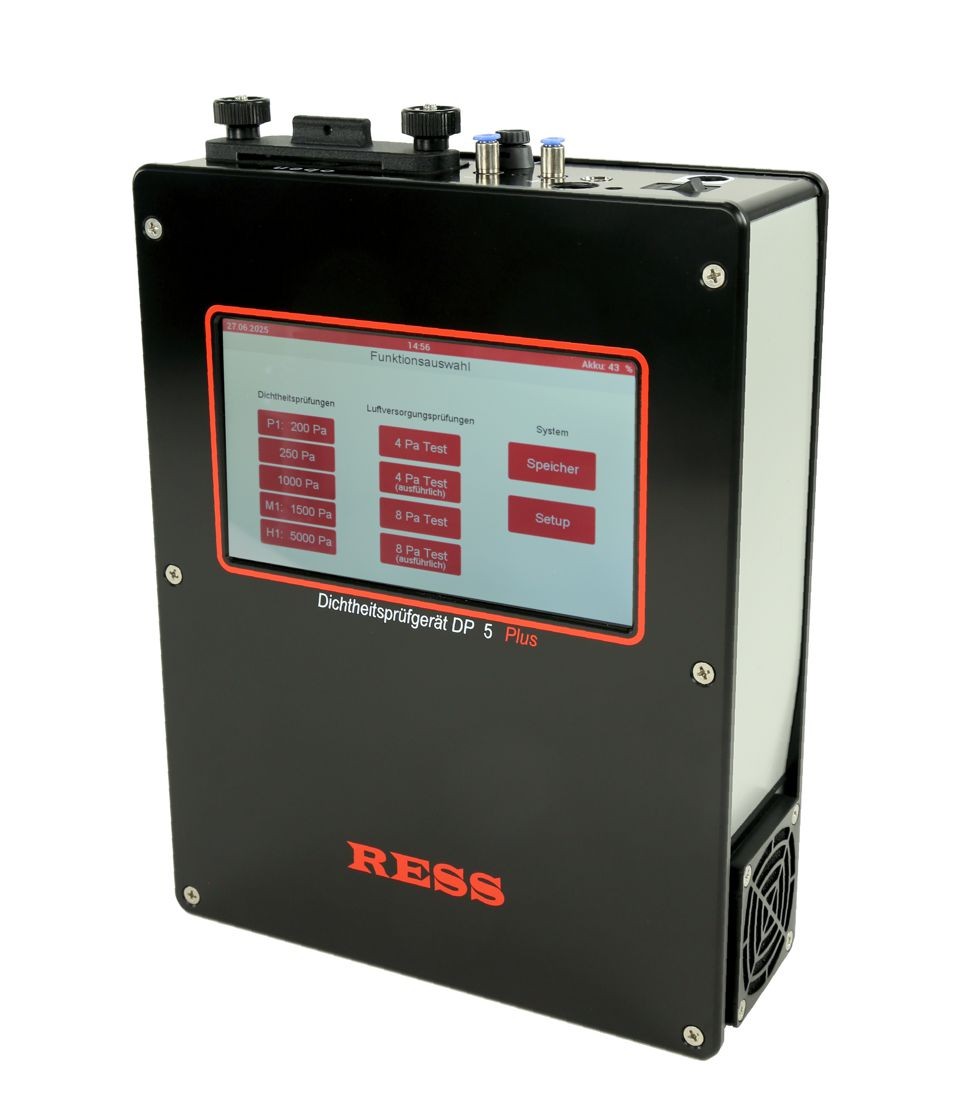

The leakage test device DP5 is used to inspect exhaust systems at 200, 1,500, and 5,000 Pa (classes P1, M1, H1). Another application is to verify sufficient combustion air supply according to TRGI. Testing Procedures: Simplified Procedure: Measurement during the operation of a gas appliance Detailed Procedure: Measurement with defined air extraction using the DP5 You can watch an application video here. Advantages: Battery operation enables measurements from the roof Mains operation for uninterrupted work Now also testing exhaust pipes with 5,000 Pa Lightweight and handy Higher utility by testing air yield according to TRGI Easy operation via a very large 7" touch screen Technical Data: Pressure Measurement Range 1: 0 to 5,000 Pa Pressure Measurement Range 2: 0 to 125 Pa Air Volume Flow: 0 to 60 m³/h Battery: 24V with 3.2Ah Mains Operation: 230 V Weight: approx. 3.8 kg Dimensions: 22x31x8.5 cm (WxHxD) LCD Color Touch Display: 7" USB and IRDA Interface TÜV Certified Delivery Contents: Leakage Test Device DP5 Integrated Battery Sealing Bladder with Device Hose NW 50-150 mm Sealing Bladder with Valve NW 50-150 mm Protective Bag 4/8 Pa Hose Set Sealing Element Mains/Charger This comprehensive and user-friendly device ensures accurate and efficient testing of exhaust systems, making it an essential tool for professionals in the field.

The DP5 leak test device is used to check exhaust systems at 200, 1,500, and 5,000 Pa (classes P1, M1, H1). Another application is to verify sufficient combustion air supply according to TRGI standards. Applications: Simplified Procedure: Measurement with the gas appliance in operation. Detailed Procedure: Measurement with defined air extraction using the DP5. You can watch an application video [here]. Advantages: Battery operation enables measurements from the roof. Mains operation for uninterrupted work. Now with storage for exhaust line tests. Lightweight and handy device. Increased utility by testing air yield according to TRGI. Easy operation via a large 7" touch screen. Simple language selection: German, English, Italian, Polish, Hungarian, Turkish. Technical Data: Pressure Measurement Range 1: 0 to 5,000 Pa Pressure Measurement Range 2: 0 to 125 Pa Air Flow Rate: 0 to 60 m³/h Battery: 24V with 3.2Ah Mains Operation: 230V Weight: approx. 3.8 kg Dimensions: 22x31x8.5 cm (WxHxD) LCD Color Touch Display 7" USB and IRDA Interface TÜV certified Scope of Delivery: DP5 Leak Test Device Integrated Battery Power/Charger Adapter

Robust and high-quality Cordura® transport bag - Fully padded and partially reinforced - 1 spacious main compartment - Lid with flap and magnetic closure - Adjustable shoulder/carrying strap - 1 foil pocket in the lid - 4 feet on the bottom of the bag for stability - Reflective strips on the front and sides - Dimensions: approx. 310 x 410 x 230 mm (WxHxD) - Material: water-repellent Cordura® exterior, truck tarpaulin interior - Colour: black
