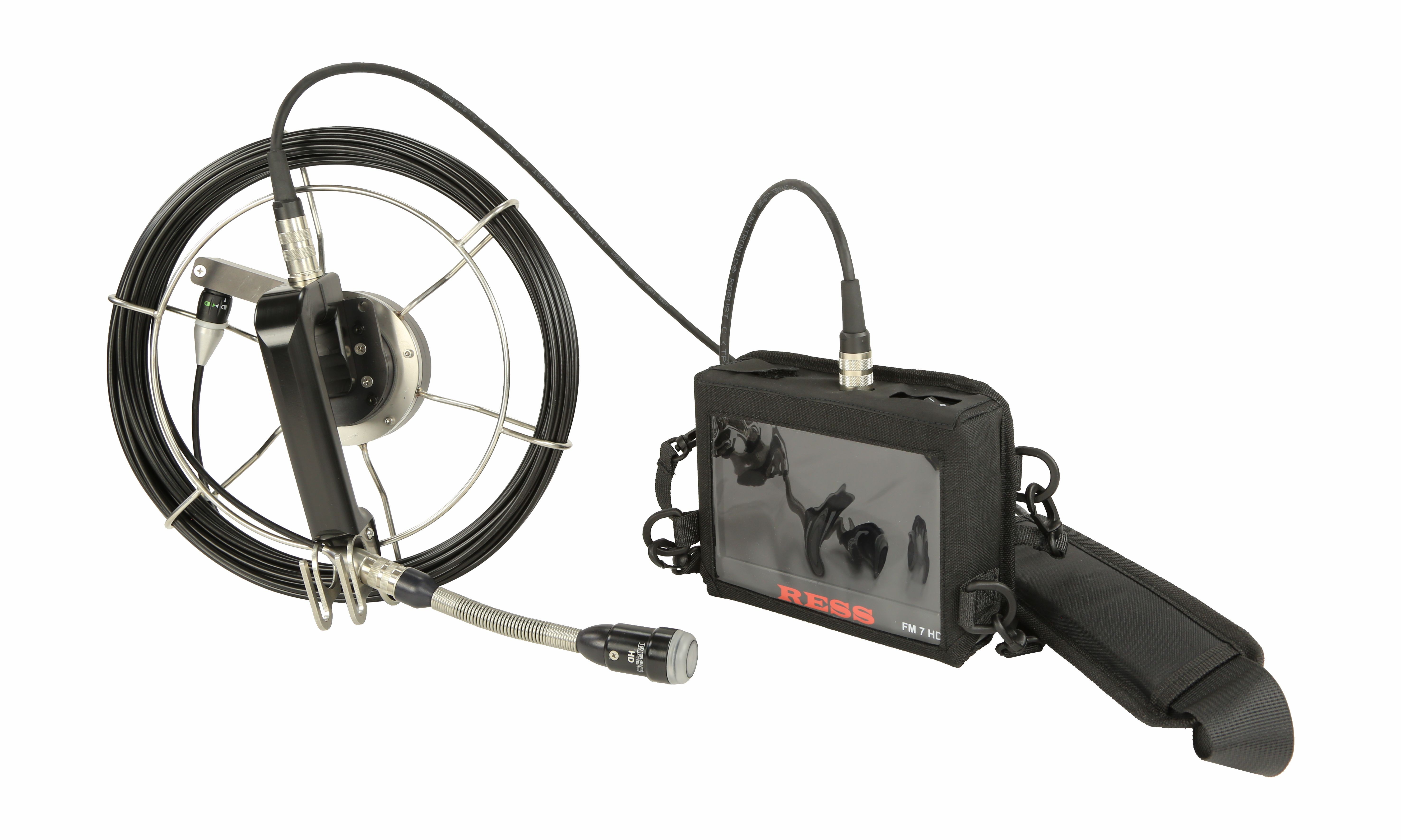

HD-FM7 Set for Exhaust Pipes - consisting of: HD Mini Camera Reel Ideal for exhaust ducts – highly flexible yet stable, suitable for use as a handheld or coupling reel. The reel features a digital meter counter that is displayed on the screen. - Fiberglass camera rod, 20 m long and Ø 5 mm - Extremely flexible and strong enough to push the camera head far up - Basket diameter only 31 cm - Transport lock - Needle bearing - Freewheel brake - 8-pin connector** on the handle and 12-pin connector** at the rod end Scope of Delivery: - HD color monitor FM7 - HD miniature camera MK29 - HD mini camera reel, 20 m with digital meter counter - 2 m connection cable - Protective bag with magnet - Power adapter/charger

The newly developed digital HD chimney inspection camera SK7 delivers razor-sharp images in HD quality. The power supply is provided by advanced lithium-ion battery technology, ensuring long operating time. The inspection camera is a compact and user-friendly device, ideal for inspections from the roof. Its large 7" color monitor displays sharp images. Photos and videos can be easily stored on an SD card and played back on-site. The display also shows time and date, and the digital meter counter simplifies length measurement. A sunshield makes inspections easier even in bright daylight. It is magnetically attached around the carrying handle and serves as display protection during transport. On the back, there is a protected storage compartment for the camera head. Additionally, the SK7 can be connected to a camera reel. The package includes a carrying harness, ensuring optimal handling on the roof—keeping both hands free at all times! The HD rotating ball camera is controlled via a joystick. It has an infinite rotation range and a 90° tilt range. The camera module is protected behind a glass cover and surrounded by a bright SMD lighting ring with a reflector for optimal illumination. The camera module automatically adjusts the focus, requiring no manual adjustments during inspections. The new HD camera module generates high-resolution images. A reel connection (optional accessory) can be easily attached via a bayonet lock, enabling inspections from bottom to top as well. Technical Data – SK7 HD: Digital meter count displayed on the LCD Voltage indicator (unit: %) displayed on the LCD Photo & video storage on SD card Rotatable cable reel with 20 m cable Cable connection: 8-pin connector 7" color LCD TFT display Resolution: 1280 x 720 pixels Lithium-ion battery Battery runtime: approx. 4 hours Charging time: approx. 3.5 hours Dimensions: 307 x 285 x 200 mm (W x H x D) Weight: approx. 4.31 kg Technical Data – HD Rotating Ball Camera: Camera module resolution: 1280 x 720 pixels Color CCD camera module Light sensitivity: 0.8 Lux Tilt range: 90° Rotation range: Endless (no stop) Bright lighting with 15 SMDs Connector: 8-pin plug Head diameter: 56 mm, Length: 152 mm Weight: approx. 326 g Scope of Delivery: HD Chimney Inspection Camera SK7 HD Rotating Ball Camera 4 GB SD card 20 m cable Sunshield Carrying harness Power supply unit

The newly developed digital HD chimney inspection camera SK7 delivers razor-sharp images in HD quality. The power supply is provided by advanced lithium-ion battery technology, ensuring long operating time. The inspection camera is a compact and user-friendly device, ideal for inspections from the roof. Its large 7" color monitor displays sharp images. Photos and videos can be easily stored on an SD card and played back on-site. The display also shows time and date, and the digital meter counter simplifies length measurement. A sunshield makes inspections easier even in bright daylight. It is magnetically attached around the carrying handle and serves as display protection during transport. On the back, there is a protected storage compartment for the camera head. Additionally, the SK7 can be connected to a camera reel. The package includes a carrying harness, ensuring optimal handling on the roof—keeping both hands free at all times! The HD rotating ball camera is controlled via a joystick. It has an infinite rotation range and a 90° tilt range. The camera module is protected behind a glass cover and surrounded by a bright SMD lighting ring with a reflector for optimal illumination. The camera module automatically adjusts the focus, requiring no manual adjustments during inspections. The new HD camera module generates high-resolution images. A reel connection (optional accessory) can be easily attached via a bayonet lock, enabling inspections from bottom to top as well. Technical Data – SK7 HD: Digital meter count displayed on the LCD Voltage indicator (unit: %) displayed on the LCD Photo & video storage on SD card Rotatable cable reel with 20 m cable Cable connection: 8-pin connector 7" color LCD TFT display Resolution: 1280 x 720 pixels Lithium-ion battery Battery runtime: approx. 4 hours Charging time: approx. 3.5 hours Dimensions: 307 x 285 x 200 mm (W x H x D) Weight: approx. 4.31 kg Technical Data – HD Rotating Ball Camera: Camera module resolution: 1280 x 720 pixels Color CCD camera module Light sensitivity: 0.8 Lux Tilt range: 90° Rotation range: Endless (no stop) Bright lighting with 15 SMDs Connector: 8-pin plug Head diameter: 56 mm, Length: 152 mm Weight: approx. 326 g Scope of Delivery: HD Chimney Inspection Camera SK7 HD Rotating Ball Camera 4 GB SD card 30 m cable Sunshield Carrying harness Power supply unit

The newly developed HD color monitor is the optimal companion in a measuring case or backpack due to its small size and lightweight design. The integrated lithium-ion battery provides approximately 2.5 hours of operation. Photos and videos can be stored on the SD card. The new HD pan-tilt camera is controlled using 4 Navigation buttons. It has a rotation range of 360° and a tilt range of 90°. The camera module is protected behind a glass pane and is surrounded by an illumination ring with a reflector, which ensures optimal lighting. The camera module handles focusing automatically. No adjustments are necessary during the inspection. Magnets on the back of the protective case allow the monitor to be attached to a boiler, enabling hands-free operation during inspections. Technical Specifications: Image and video storage on SD card LCD TFT display 5" 720p: 102 x 73 mm LED voltage indicator in the display Dimensions: 135 x 220 x 39 mm (WxHxD) Weight approx. 1100g Technical data HD pan-tilt camera: Color CCD camera module: HD resolution 1280 x 720 pixels Light sensitivity 0.8 Lux Tilt range: 90° Rotation range: endless without stop Bright illumination through 15 SMDs Connector: 8-pin Head diameter 56 mm, length 152 mm Weight approx. 326 g Scope of delivery: HD monitor FM5 Pro HD rotating spherical camera Power supply/charger 30 m metered cable Protective case with magnet SD card

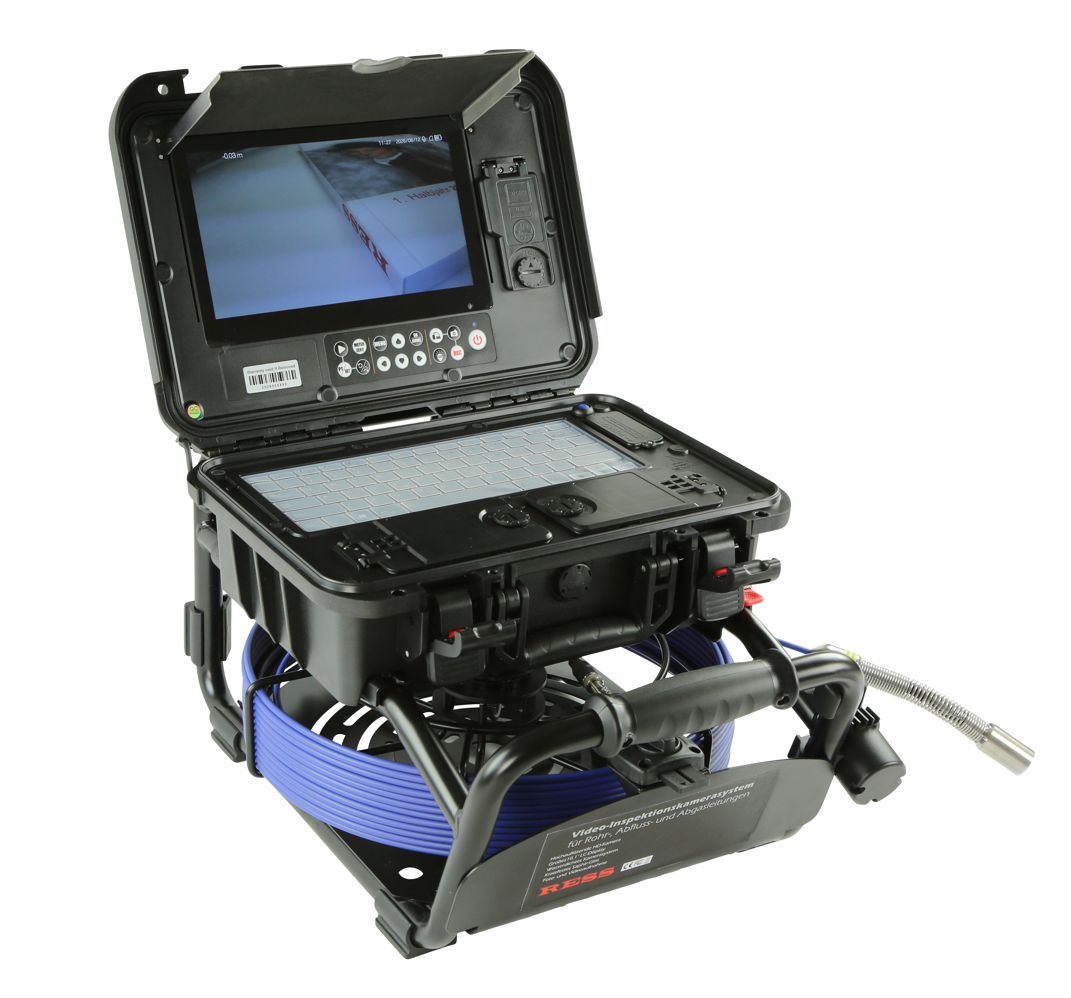

HD-Rohrinspektionskamera mit 23-mm-HD-Kamerakopf – Die professionelle Lösung für Rohr- und AbgasleitungsinspektionenDie Rohrinspektionskamera mit ihrem selbst-nivellierendem 23-mm-HD-Kamerakopf wurde speziell für die professionelle Inspektion von Rohrleitungen, Abflüssen, Sanitärinstallationen und Abgasleitungen entwickelt. Durch den kompakten Kamerakopf mit einer Gesamtlänge von nur 182 mm lassen sich auch enge Rohrsysteme, Bögen und schwer zugängliche Bereiche zuverlässig untersuchen.Das System eignet sich ideal für Installateure, Rohrreinigungsunternehmen, Heizungs- und Sanitärbetriebe, Schornsteinfeger, Hausmeisterdienste sowie Sachverständige, die Wert auf eine robuste Technik und eine hervorragende Bildqualität legen.Selbstnivellierender Kamerakopf für eine stets korrekte BildausrichtungDer Kamerakopf verfügt über eine integrierte Selbstnivellierung (Self Leveling). Dadurch richtet sich die Kamera während der Inspektion automatisch aus und liefert jederzeit ein horizontal ausgerichtetes Bild – unabhängig davon, wie sich der Kamerakopf innerhalb der Rohr- oder Abgasleitung dreht.Diese Funktion erleichtert die Orientierung erheblich und ermöglicht eine deutlich präzisere Beurteilung von Rohrverläufen, Ablagerungen, Rissen oder anderen Schäden. Gerade bei längeren Inspektionen sowie bei der Dokumentation von Schäden sorgt die automatische Horizontausrichtung für eine professionelle und komfortable Arbeitsweise. Schornsteinfeger, Installateure und Rohrsanierungsbetriebe profitieren von einer besseren Übersicht und einer schnelleren Auswertung der Aufnahmen.Der hochwertige Kamerakopf besteht zudem aus widerstandsfähigem Edelstahl und ist nach Schutzart IP68 vollständig wasserdicht. Die kratzfeste Saphirglaslinse schützt die Kamera zuverlässig vor Beschädigungen. Leistungsstarke, dimmbare LEDs sorgen auch in vollständig dunklen Rohrleitungen oder Abgasanlagen für eine gleichmäßige und helle Ausleuchtung.Die hochauflösende HD-Kamera liefert gestochen scharfe Bilder und Videos, die direkt auf einer SD-Karte gespeichert werden können. Über den brillanten LCD-Farbmonitor lassen sich die Aufnahmen in Echtzeit verfolgen. Je nach Ausstattung können Datum, Uhrzeit und die aktuelle Kabellänge direkt im Bild eingeblendet werden.Das glasfaserverstärkte Schubkabel kombiniert hohe Stabilität mit der erforderlichen Flexibilität, um die Kamera auch über längere Strecken sicher durch Rohrleitungen zu führen. Das gesamte Kamerasystem wurde für den täglichen professionellen Einsatz entwickelt und überzeugt durch seine einfache Bedienung, hohe Zuverlässigkeit und lange Lebensdauer.Highlights- Selbstnivellierender HD-Kamerakopf für stets horizontale Bilddarstellung- Gesamtlänge des Kamerakopfes: 182 mm- Robustes Edelstahlgehäuse- Kratzfeste Saphirglaslinse- Abnehmbare Koffereinheit- Texteingabe in das Video über Tastatur- Schutzart IP68 – vollständig wasserdicht- Leistungsstarke, dimmbare LED-Beleuchtung- Hochauflösender 10,1" LCD-Farbmonitor- Foto- und Videoaufzeichnung auf SD-Karte- Glasfaserverstärktes Schubkabel mit hervorragenden Schiebeeigenschaften- Wiederaufladbarer Lithium-Ionen-Akku mit langer Betriebsdauer- Robuste Ausführung für den täglichen professionellen EinsatzTypische Einsatzbereiche- Inspektion von Abgas- und Lüftungsleitungen- Kontrolle von Küchen- und Hausabflüssen- Diagnose von Rohrverstopfungen und Rohrschäden- Sanitär- und Heizungsinstallation- Wartungs- und Servicearbeiten an Rohrleitungssystemen- Sehr bogengängig: Inspektion von Abgasleitungen ab DN 50 Technische DatenKamerakopf- Kameramodul: CMOS 1/3"- Auflösung: 1920 x 1080- Sichtfeld: 110°- Ø 23 mm- selbst-nivellierend- Gesamtlänge: 182 mm- Abschraubbar- Focusabstand: ca. 15 cm- Beleuchtung: 15 weiße LEDs- Kameragehäuse: Edelstahl- Frontscheibe: Saphirglas- Schutzart: IP68- Beleuchtung: integrierte, dimmbare Hochleistungs-LEDsMonitor- HD-Farbdisplay- Videoauflösung: AHD 1080P / CVBS D1 mit DVR-Aufnahmefunktion- Lokale Tonaufnahme- Ausgänge: TV- und Audioausgang- Datum und Uhrzeit auf dem Bildschirm- Meterangabe im Display- Speichermedium: SD-Karte (unterstützt bis 64 GB)- Sprachen: Deutsch, Englisch, Französisch, Italienisch, Spanisch, Portogiesisch Finnisch, SchwedischAllgemeine Angaben- Schubstange: Ø 5,2 mm, Länge: 20 m, glasfaserverstärkt- Stromversorgung: Lithium-Ionen-Akku 7,2V 6400 mAh- Akkustandzeit: 6 Std- Ladezeit: 8 Std- Gewicht: 11,3 kg- Maße: 39 x 30 x 46 cm (LxBxH)Modulares System – Nachhaltig, wirtschaftlich und servicefreundlichDie Profi-Rohrinspektionskameras sind als modulares Inspektionssystem konzipiert. Sämtliche Hauptkomponenten wie Kamerakopf, Schubstange, Kabeltrommel, Monitor, Verbindungskabel, Akku oder Ladegerät können bei Bedarf einzeln ausgetauscht werden.Sollte eine Komponente durch Verschleiß oder eine Beschädigung ausfallen, muss nicht das komplette Kamerasystem ersetzt werden. Defekte Bauteile lassen sich schnell und kostengünstig austauschen, wodurch die Einsatzbereitschaft Ihrer Rohrkamera in kurzer Zeit wiederhergestellt werden kann.Dieses servicefreundliche Konzept reduziert Ausfallzeiten, schont Ressourcen und senkt die Betriebskosten nachhaltig. Gleichzeitig profitieren Sie von einer langfristigen Ersatzteilversorgung und einem professionellen Reparatur- und Wartungsservice.Lieferumfang- Rohrinspektionskamera mit 23-mm-HD-Kamerakopf- Glasfaser-Schubstange auf Kabeltrommel 20 m- 10" LCD-Farbmonitor mit DVR-Aufnahmefunktion- Lithium-Ionen-Akku- Ladegerät / Netzteil- Fahrzeug-Ladekabel- 4 Kameraführungen (Schub- und Schutzhülsen)- Fernbedienung- Bedienungsanleitung

The newly developed HD color monitor is the perfect companion for measurement cases or backpacks due to its compact size and lightweight design. The HD pan-tilt camera can be controlled via the control pad. The integrated lithium-ion battery provides an operating time of approximately 2.5 hours. Photos and videos can be stored on an SD card. The device records photos and video sequences of up to 5 minutes. Technical Data: Image and video storage on SD card HD display 5" LED voltage indicator in percent on the display Aluminum top plate Dimensions: 135 x 220 x 39 mm (W x H x D) Weight: approx. 1100 g HD Camera Head MK29 The HD-MK29 is designed for use in pipes starting at DN60. The flexible hydraulic hose ensures excellent handling in bends. The rounded components prevent the camera from getting stuck when pulled back. The camera module is securely positioned behind a glass pane, surrounded by a reflector with built-in lighting that ensures optimal illumination. The ultra-bright SMD lighting and the wide viewing angle of 135° provide an excellent all-around view. Technical Data: HD camera module Lens: 2.5 mm Diameter: 29 mm Length: 126 mm Lighting: 15 SMD LEDs Weight: 136 g Field of view: 135° HD Mini Camera Reel Ideal for exhaust ducts – extremely flexible yet stable, usable as both a handheld and coupling reel. The reel features a digital meter counter displayed on the screen. GFK camera rod, 20 m long, Ø 4.5 mm Extremely maneuverable in bends while strong enough to push the camera head far up Basket diameter: only 31 cm Transport lock Equipped with needle bearing Freewheel brake 8-pin connector on the handle and 12-pin connector at the rod end Scope of Delivery: HD color monitor FM 5 Pro HD miniature camera MK 29 HD mini camera reel 20 m with digital meter counter 2 m connection cable SD card Protective bag with magnet Power Adapter

The newly developed HD color monitor, with its compact size and lightweight design, is the perfect companion for a measuring case or backpack. The integrated lithium-ion battery ensures an operating time of approximately 2.5 hours. Photos and videos can be stored on the SD card. The battery level is displayed on the LCD screen. The new HD pan-and-tilt camera is controlled using four control buttons. It has a rotation range of 360° and a tilt range of 90°. The camera module is protected behind a glass panel and surrounded by a lighting ring with a reflector, ensuring optimal illumination. The HD-MK29 is designed for use in exhaust ducts. The flexible hydraulic hose provides excellent bendability. The camera module is safely enclosed behind a glass panel, surrounded by a reflector with built-in lighting for very bright illumination. The ultra-bright LED lighting and the 135° super wide-angle lens enable an excellent all-around view. Technical Data – 5" HD Monitor: Image and video storage on SD card HD display 5" LED voltage display in percentage on display Aluminum cover plate Dimensions: 135 x 220 x 39 mm (W x H x D) Weight: approx. 1100g Technical Data – HD Pan-and-Tilt Camera: High-precision camera lens (92°) with automatic aperture control HD camera module 8-pin connector Light sensitivity: 0.8 Lux Bright illumination with 15 SMDs Head diameter: 55 mm, length: 153 mm Weight: approx. 312 g Technical Data – HD Miniature Camera MK29: HD camera module Light sensitivity: 0.3 Lux Diameter: 29 mm Head length: 68 mm Total length: 190 mm Illumination: 15 SMDs Weight: approx. 110 g Field of view: 135° Technical Data – HD Cable Reel: Digital meter counter 8-pin connector on the handle and 12-pin connector at the rod end Can be used as a handheld or coupling reel Fiberglass camera rod: 20 m length, Ø 4.5 mm Transport lock Freewheel brake via needle bearing Dimensions: 31 x 31 x 13.5 cm (W x H x D) Weight: 1.75 kg Basket diameter: 31 cm Scope of Delivery: HD color monitor FM5 Pro HD pan-and-tilt camera HD miniature camera MK29 HD mini cable reel 20 m metered cable 2 m connection cable Protective pouch with magnet Power adapter SD card

The new HD chimney camera SK7 is a compact and handy device, ideal for inspections from rooftops. The large 7" HD color monitor displays crystal-clear images. Photos and videos can be easily stored on an SD card and played back on-site. Time and date can also be displayed. The digital meter count simplifies length measurement. The sun shield enhances visibility even in bright daylight. It attaches magnetically around the carrying handle and also serves as a display protector during transport. On the back, a protected storage compartment provides space for keeping the camera head safe. Additionally, an HD camera reel can be connected to the SK7 HD for extended functionality. For effortless operation on the roof, the included carrying harness ensures that the user has both hands free at all times. The HD rotating ball camera offers endless rotation and can tilt from 0° to 90°. With a diameter of only 55 mm, it is ideal for chimney inspections. The camera module is securely placed behind a glass cover, surrounded by a reflector with integrated lighting for optimal illumination. The high-precision HD camera module features automatic aperture control, ensuring automatic sharpness and exposure adjustment. Technical Specifications – Monitor: Digital meter count display on the LCD Voltage display (in %) on the LCD Image and video storage on SD card Rotatable cable drum with 20 m cable 7" HD display Lithium-ion battery Dimensions: 307 x 285 x 200 mm (W x H x D) Weight: Approx. 4.91 kg Technical Specifications – Rotating Ball Camera Pro: High-precision 92° camera lens with automatic aperture control HD camera module 8-pin connector Light sensitivity: 0.8 Lux Bright illumination with 15 SMDs Camera head diameter: 49 mm, Length: 153 mm Weight: Approx. 0.290 kg HD Camera Head MK29 – For Pipes from DN50 Designed for use in pipes from DN50. The flexible hydraulic hose ensures maneuverability in bends. Rounded components prevent the camera from snagging when pulled back. Ultra-bright SMD lighting and a very wide 135° viewing angle provide an excellent all-around view. Technical Specifications: HD camera module Lens: 2.5 mm Diameter: 29 mm Length: 126 mm Illumination: 15 SMDs Weight: 136 g Field of view: 135° HD Mini Camera Reel – Ideal for Exhaust Ducts Highly flexible yet stable – perfect for exhaust ducts. The mini reel features a digital meter counter, displayed on the screen. 20 m fiberglass camera rod with a 4.5 mm diameter Extremely bendable yet strong enough to push the camera head far up Basket diameter of only 31 cm Transport lock Equipped with needle bearings Freewheel brake 8-pin connector on the handle and 12-pin connector at the rod end Scope of Delivery: HD Chimney Camera SK7 HD Rotating Ball Camera HD Miniature Camera MK 29 HD Mini Camera Reel (20 m) with Digital Meter Counter SD Card 20 m Cable Sun Shield Carrying Harness Power Supply Unit
