RESS-Leakage Tester DP 5 N1 - Set - consisting of:
€4,590.00
Description
Documents 2
Customers also viewed

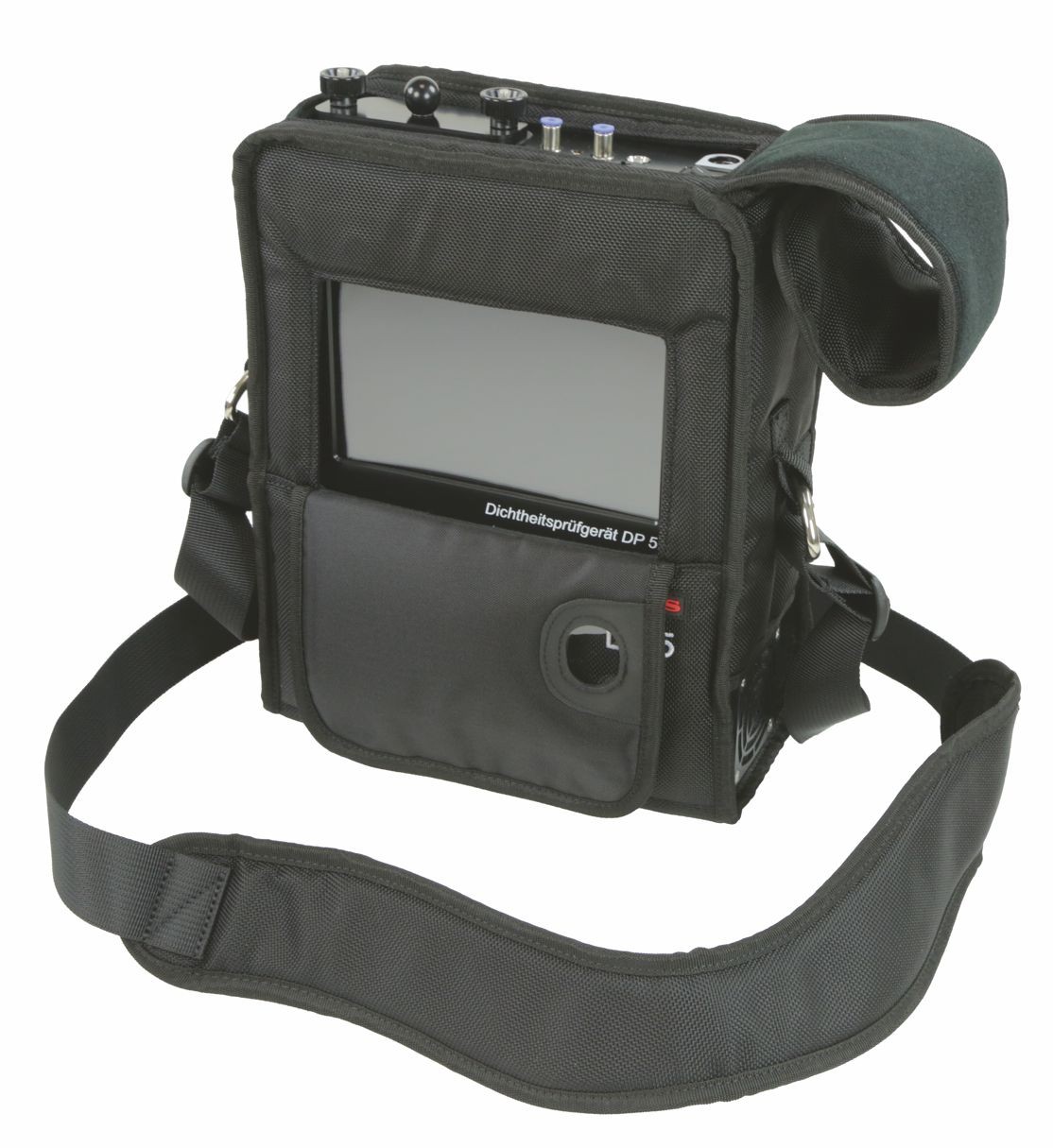

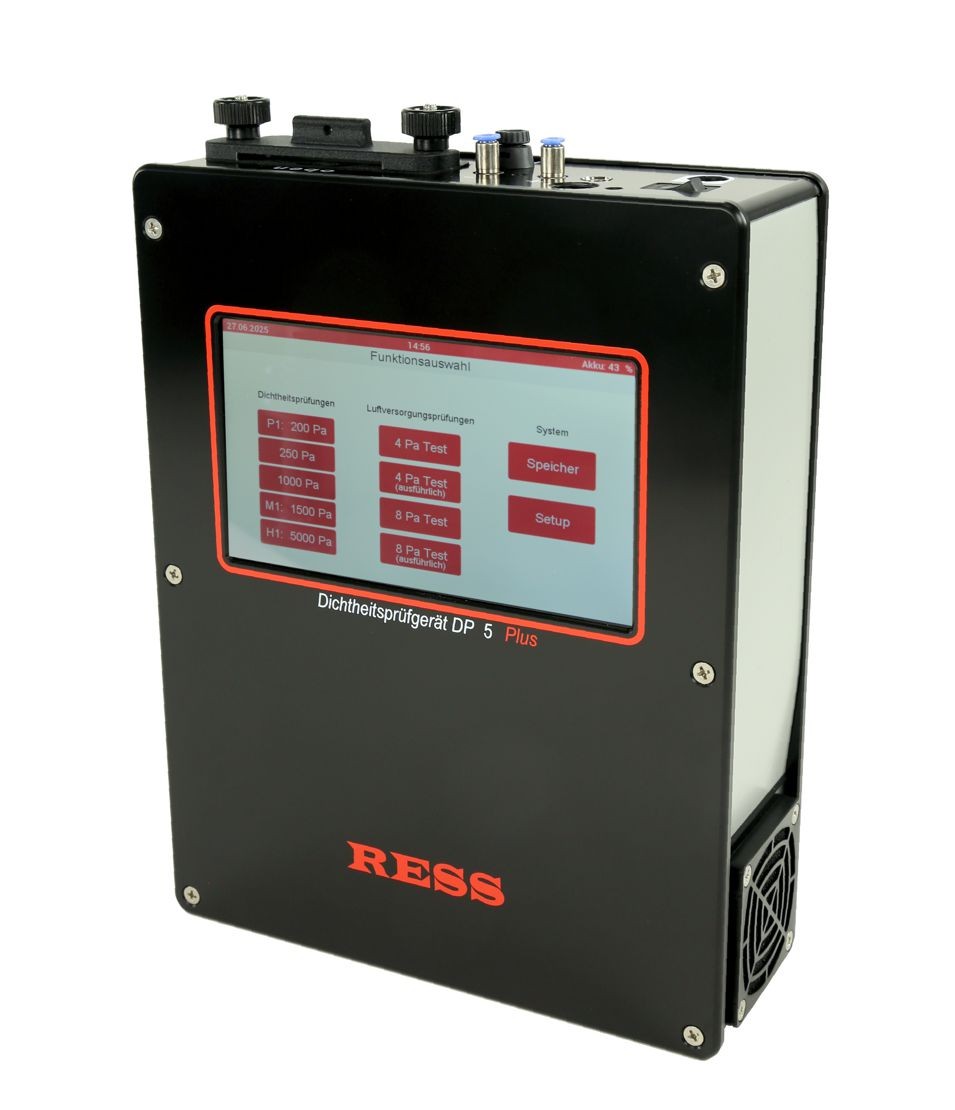

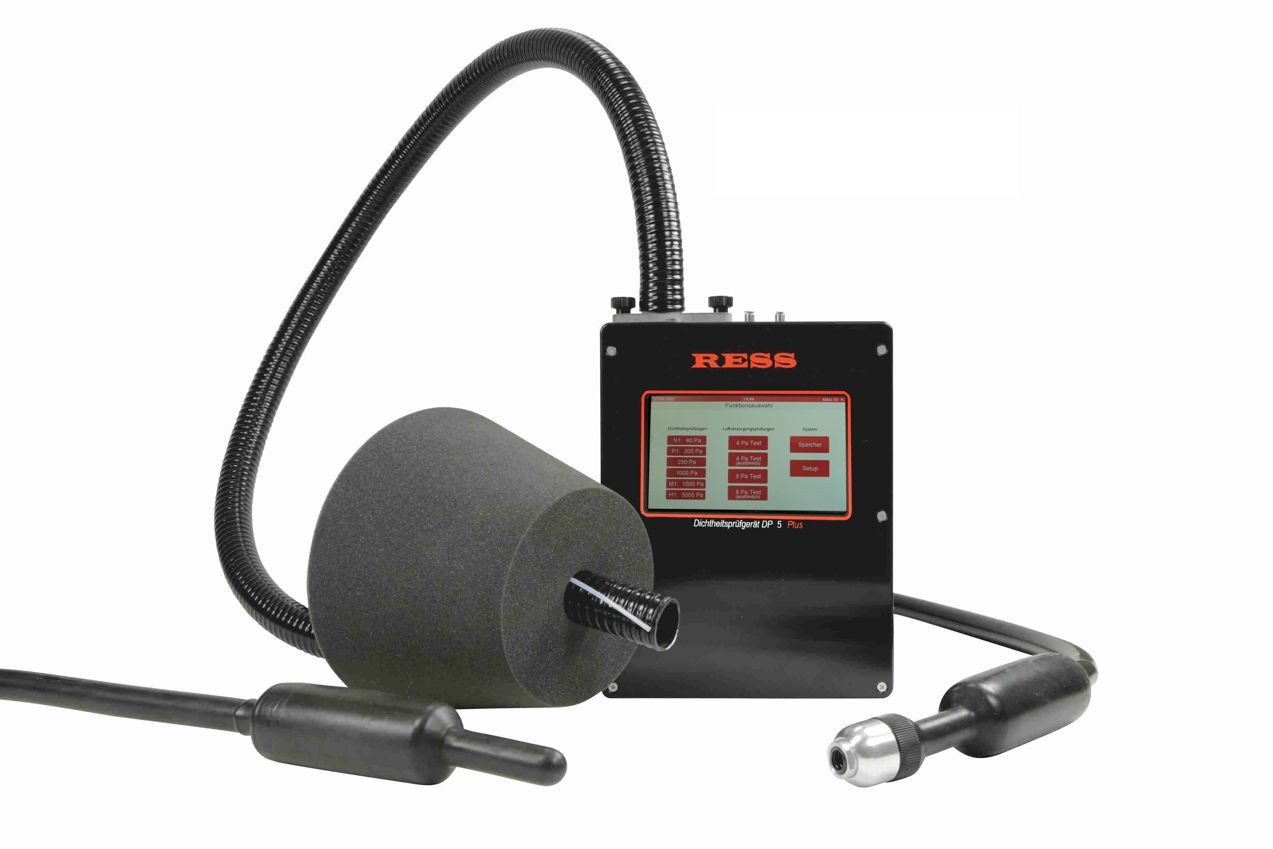

The leakage test device DP5 is used to inspect exhaust systems at 200, 1,500, and 5,000 Pa (classes P1, M1, H1). Another application is to verify sufficient combustion air supply according to TRGI. Testing Procedures: Simplified Procedure: Measurement during the operation of a gas appliance Detailed Procedure: Measurement with defined air extraction using the DP5 You can watch an application video here. Advantages: Battery operation enables measurements from the roof Mains operation for uninterrupted work Now also testing exhaust pipes with 5,000 Pa Lightweight and handy Higher utility by testing air yield according to TRGI Easy operation via a very large 7" touch screen Technical Data: Pressure Measurement Range 1: 0 to 5,000 Pa Pressure Measurement Range 2: 0 to 125 Pa Air Volume Flow: 0 to 60 m³/h Battery: 24V with 3.2Ah Mains Operation: 230 V Weight: approx. 3.8 kg Dimensions: 22x31x8.5 cm (WxHxD) LCD Color Touch Display: 7" USB and IRDA Interface TÜV Certified Delivery Contents: Leakage Test Device DP5 Integrated Battery Sealing Bladder with Device Hose NW 50-150 mm Sealing Bladder with Valve NW 50-150 mm Protective Bag 4/8 Pa Hose Set Sealing Element Mains/Charger This comprehensive and user-friendly device ensures accurate and efficient testing of exhaust systems, making it an essential tool for professionals in the field.
